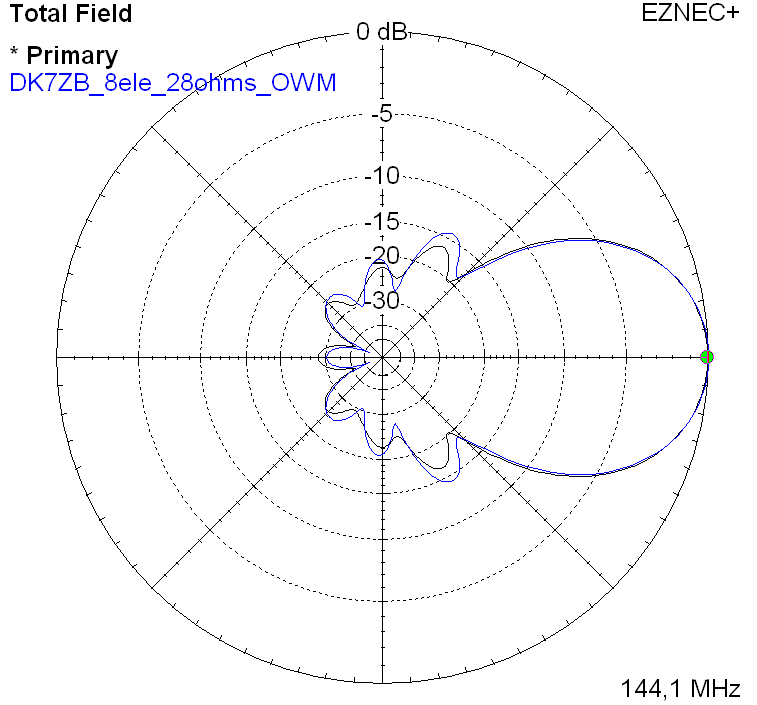

Elevation plots at 144.1 MHz
Primary trace = black line is fine tuned version; blue line is original 8 ele. OWM
Original 50 ohms "5-8" Gain vs. isotr. Rad. 13.09 dBi T_ant 249 K* G/T -10.89 dB |
DK7ZB's 28 ohms interpretation Gain vs. isotr. Rad. 13.20 dBi T_ant 255 K* G/T -10.87 dB* |
Fine tuned 28 ohms version Gain vs. isotr. Rad. 13.15dBi T_ant 250 K* G/T -10.83 dB* |
73, Hartmut, DG7YBN
