Dipole Parts for VHF / UHF
Dipoles and alike
Dipoles
Blade Dipole for the 70 cm Band• Blade Dipole for the 70 cm Band
Laser cut dipole arms for building a DG7YBN GTV 70-19m, GTV 70-25m or GTV 70-30m.
Material is aluminum t = 2 mm.
Fits 1:1 for use on 25 x 25 mm and 1 x 1 inch booms.
| Art. # | Description | Stock | Price |
| Blade GTV 70-19/30 | Pair of sheet metal Blade Dipole arms suiting a GTV 70-19 to 30 | € 5.00 |
Sold out, sorry ...
Application Samples
Pair of Blade Dipole arms mounted
A bracket for various booms can be produced with a 3D printer.
The .stl files of DG7YBN drawn brackets for 20 x 20, 25 x 25 mm and 1 x 1 inch are for free download see here: http://dg7ybn.de/Bent_DE/Bent_DE.htm#3D_printing_bracket
Bracket for 3D self printing
For 20 x 20 mm boom : screws M4 x 25 mm.
For 25 x 25 mm boom and 1 x 1 inch : screws M4 x 30 mm

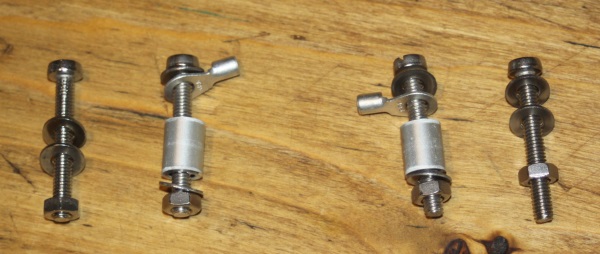

Screws and spacers
Prices incl. legal VAT. plus shipping costs
